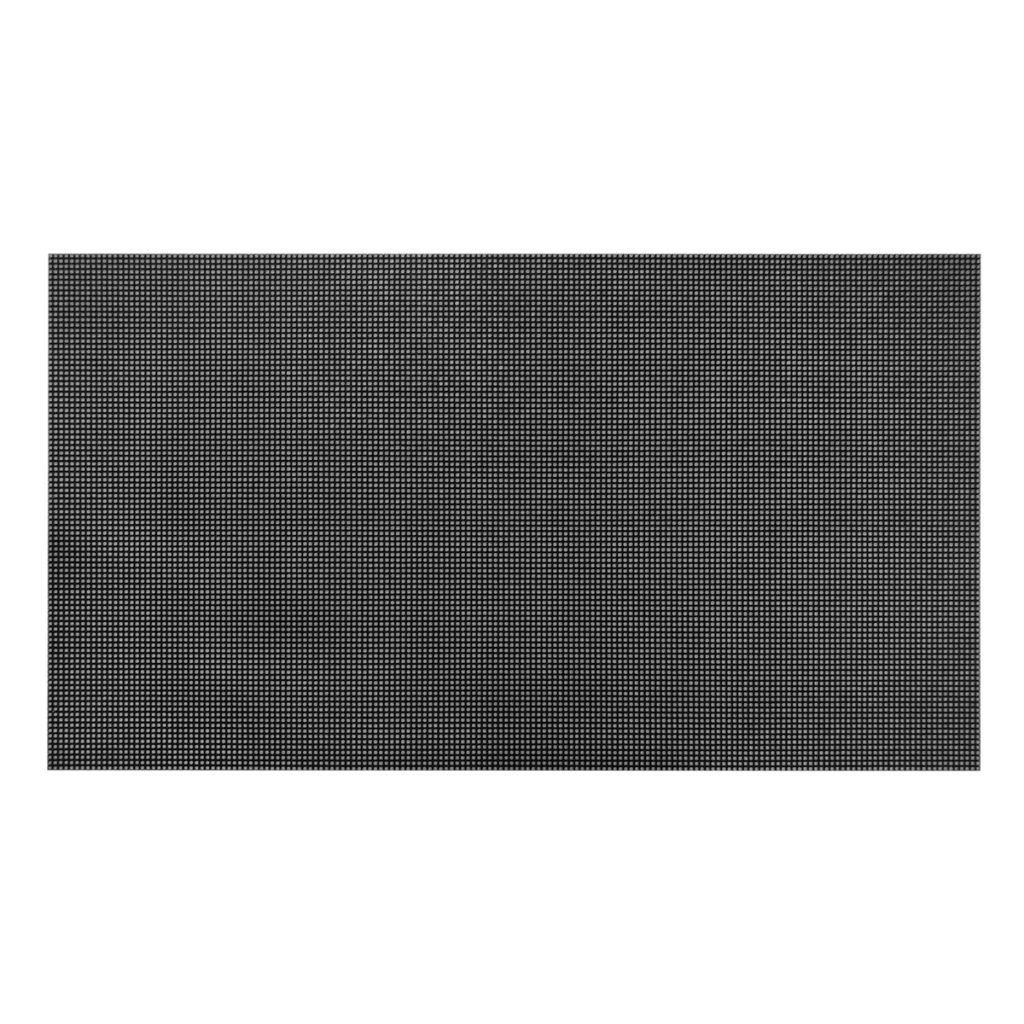

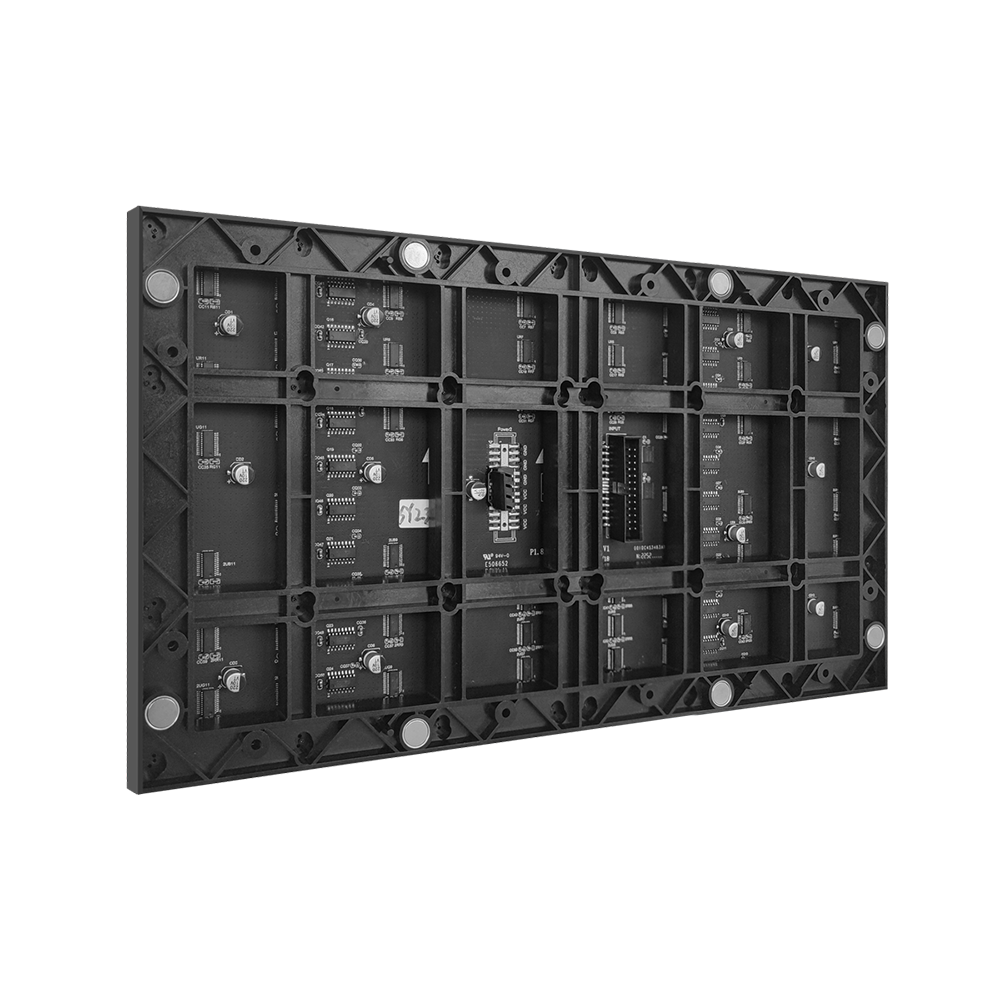

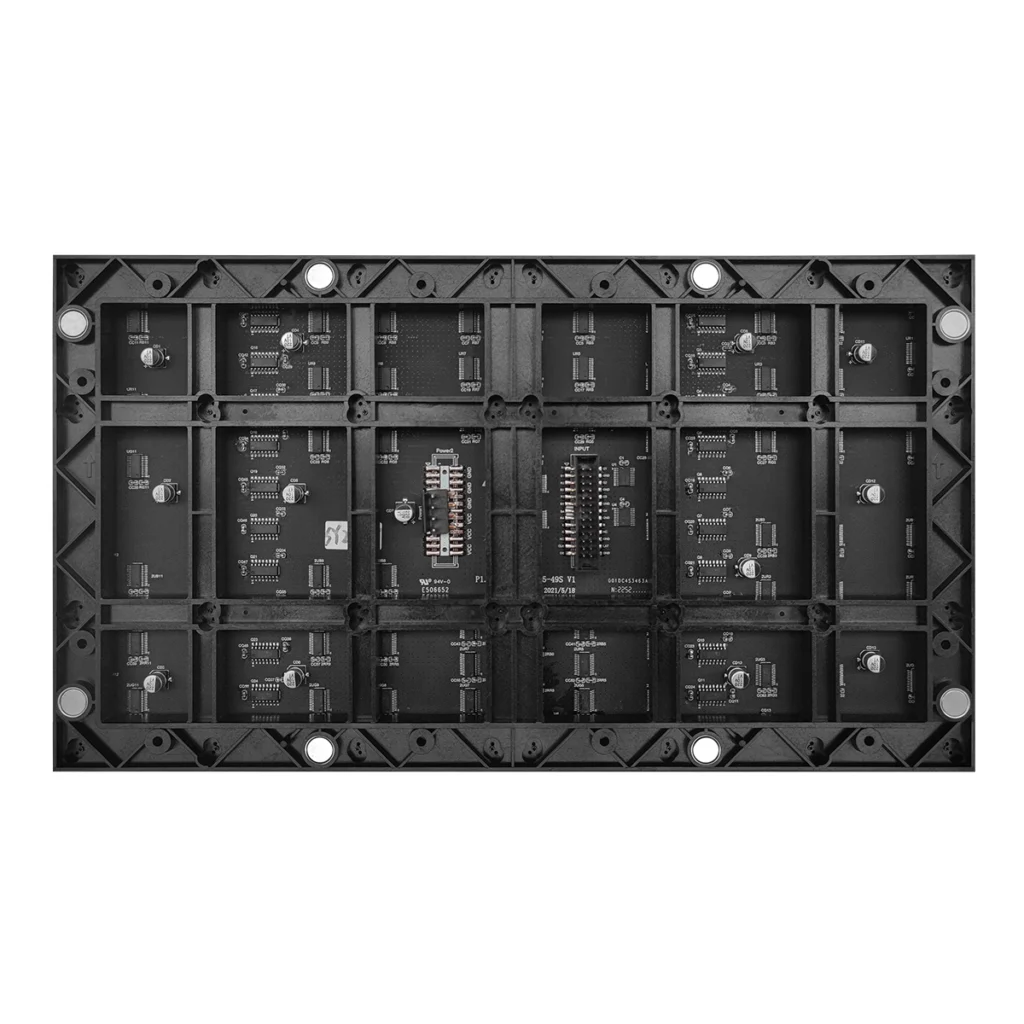

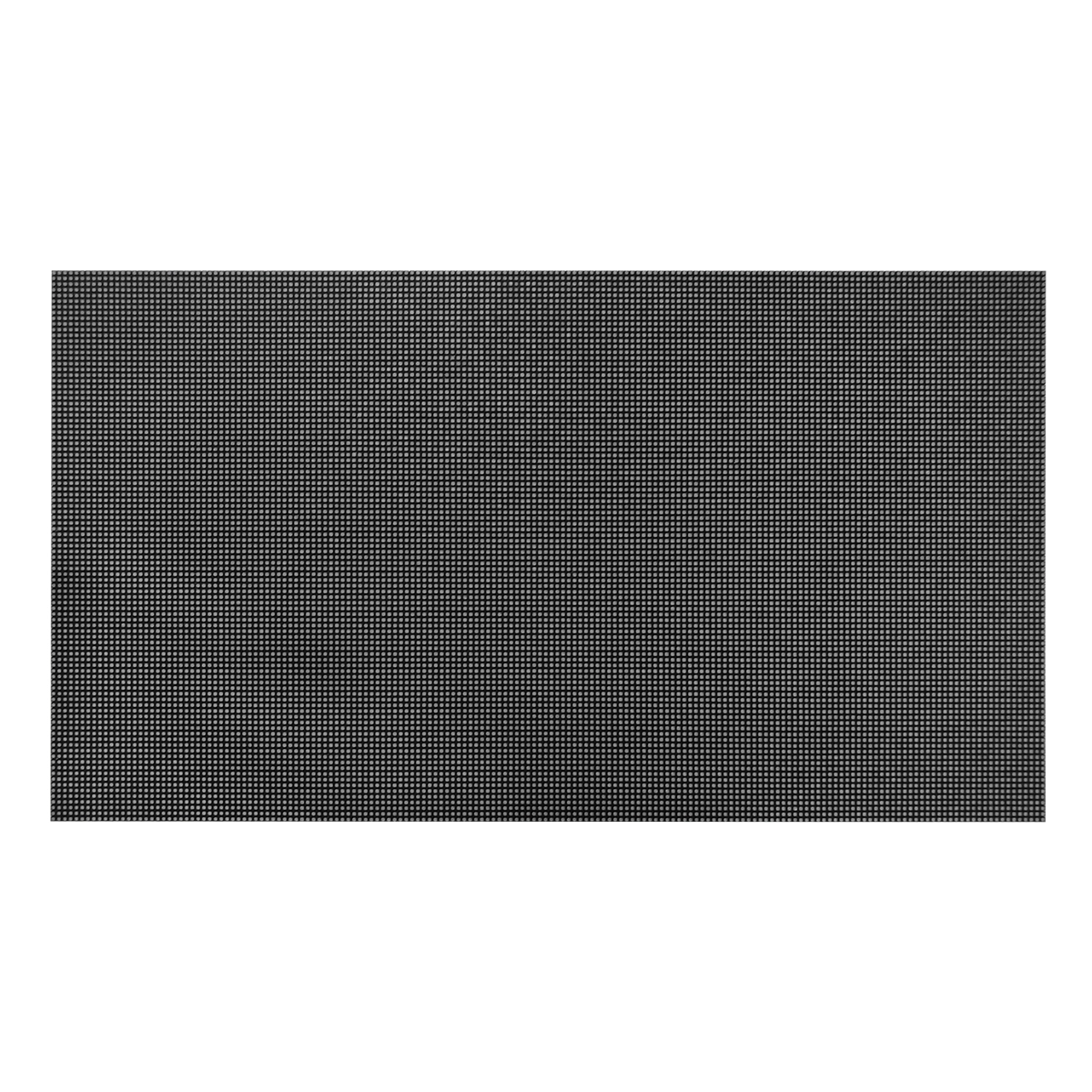

Indoor LED Module

Using 320mm*180mm module,640mm*360mm die-cast aluminum cabinet. Good flatness of cabinet splicing, great display performance at a short distance viewing. Adopt high performance driving IC, high refresh rate at low gray scale, high contrast ratio and great low gray scale shifting. Support HDR.

1.1 Application Scope

This module is suitable for use in environments such as banking, telecommunications, offices, monitoring stations, conference rooms, TV studios, live events, command rooms, and other similar indoor settings.

1.2 Product Features

• Standardized 640mm*360mm cabinet, standardized 320mm*180mm module, golden 16:9 ratio design.
• Compatible pitch:1.25nmm/1.53mm/1.86mm/2mm/5mm.
• Viewing angle: Horizontal ≥ 140°, Vertical ≥ 120°.
• The cabinet can be seamlessly spliced horizontally and vertically, effectively reducing the visual gap interference, and the overall display of the screen is coherent.
• High brush, low gray, refresh frequency up to 3840Hz, gray level 14Bit (software on 16Bit).
• Dot-to-dot matching of 2K/4K/8K resolutions, fully front-maintained design.
